Hybrar™ is styrenic block copolymer that is developed by Kuraray Co., Ltd. which using Kuraray’ s unique isoprene technology. Hybrar™ have polystyrene end blocks and a vinyl rich polydiene midblock. Unhydrogenated Hybrar™ (5000-series) has high vibration damping and shock absorption properties because glass transition temperature (Tg) is near room temperature. On the other hand, hydrogenated Hybrar™ (7000-series) is miscible with polypropylene (PP) so that it is resulted in high transparency of blend between PP and hydrogenated Hybrar™.

Characteristics of Hybrar™

  • High vibration damping properties at room temperature
  • High affinity to polyolefins and styrenics
  • Curable like vulcanized rubber
  • Rubber like elastic
  • Miscibility with polypropylene
  • Excellent transparency, flexibility and mechanical properties
  • Excellent heat and weather resistance

Application of Hybrar™

  • Sport equipments
  • Foamable sound damping sealants
  • Housing and construction components
  • Electronic components
  • Hearing protection
  • Film and sheet for medical packaging

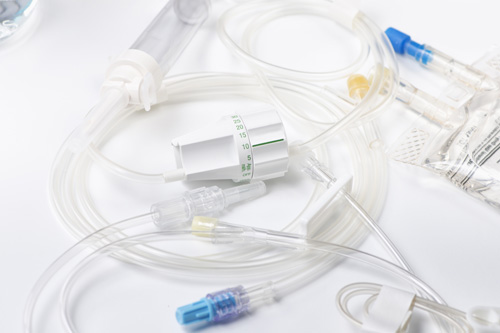

  • IV bags and tubes
Selection Guide
Chemical nameStyrene Content, wt%Durometer Hardness (Shore A)Melt Index, g/10 min (2.16kg, 190°C)Melt Index, g/10 min (2.16kg, 230°C)Peak Temperature of Tan ᵹ , °CSpecific GravityTensile Modulus 100%, MPaTensile Modulus 300%, MPaTensile Strength, MPaElongation, %Physical Form
Unhydrogenated vinyl-bond rich SIS20604--30.941.62.58.8730Pellet
Unhydrogenated vinyl-bond rich SIS20845-200.942.84.712.4730Pellet
Hydrogenated vinyl-bond rich SEPS20640.74-50.91.72.77.1680Pellet
Hydrogenated vinyl-bond rich SEEPS12410.52-170.890.60.96.31050Pellet
