Zonyl™ PTFE is a polytetrafluoroethylene white powders resins and different to TELON™ PTFE. The differences are lower molecular weight, smaller particle sizes (2 to 20 µm), particle shapes and morphology. The Zonyl™ designed primarily for use as minority components in mixtures with other solid or liquid materials for low friction, abrasion resistance and as processing aid to improve output.
Zonyl™ PTFE grades provise :
- Enhance abrasion resistance
- Reduce coefficient of friction
- Reduce surface contamination
Application :

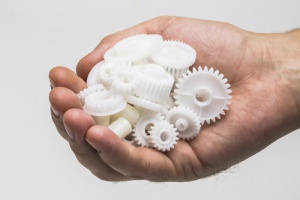

- Thermoplastic parts such as gears, benefit from improved wear resistance and reduced friction
- Elastomeric seals for improving in tear and abrasion resistance
- Inks or gravure inks can be formulated for better image protection and higher productivity
Polymer Type: Polytetrafluoroethylene
Grade | Average Bulk Density, g/L | Melting Peak Temperature, ° C | Average Particle size (Volume Basis), µ m | Specific Surface Area, m 2 /g |
---|---|---|---|---|
Zonyl ® MP1000 | 500 | 325 | 12 | 5-10 |
Zonyl ® MP1100 | 300 | 325 | 4 | 5-10 |
Zonyl ® MP1200 | 450 | 325 | 3 | 1.5-3 |
Zonyl ® MP1300 | 425 | 325 | 12 | 1.5-3 |
Zonyl ® MP1400 | 425 | 325 | 1 | 1.5-3 |
Zonyl ® MP1500 | - | - | - | - |
Zonyl ® MP1600 | 350 | 325 | - | - |
Zonyl ® MP1700 | - | - | - | - |
