Viton™ Fluoroelastomer is high performance elastomer.
Viton™ is most known for excellent resistance to elevated temperatures (400°F/200°C), chemicals, atmospheric oxidation and sun exposure.
Viton™ is much suggestion for aerospace, automotive, chemical and hydraulic applications.

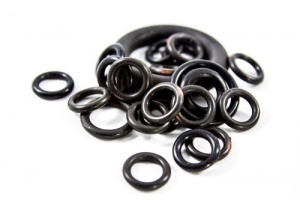

Viton™ is commonly used in O-rings and other molded or extruded goods. The fluorine content of the most common
Viton™ grades varies between 66% and 70%
Viton™ provide :
- Excellent Heat resistance (400 oF/200 oC)
- Excellent resistance to oils, fuels, lubricants, and most mineral acids.
- Extremely low permeability
- Resistance to aliphatic, aromatic hydrocarbons that dissolve other rubbers.
- Exceptionally good resistance to compression set, even at high temperatures.
- Exceptionally good resistance to atmospheric oxidation, sun, and weather.
Application :
Powertrain Systems
- Crankshaft seals, valve stem seals, transmission seals
- Air intake manifold gaskets
Fuel Systems
- Veneered fuel hose
- In-tank fuel hose and tubing
- Pump seals, diaphragms and injector O-rings
- Accelerator pump cups
- Filter caps and filter seals
- Fuel sender seals, carburetor needle tips
Polymer type :Fluoroelastomer
| Grade | Type | Hardness, shore A | Mooney viscosity (ML1+10 at 121 ° C) | Specific Gravity | Manufacuring Process | End Application |
|---|---|---|---|---|---|---|
| Viton TM HVA-2 | Curing agent | - | - | - | - | - |
| Viton TM A-500 | Rubber | 78 | 50 | 1.82 | Compression molding, Transfer molding, Injection moolding, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles |
| Viton TM AL-300 | Rubber | - | - | - | Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles |
| Viton TM AL-600 | Rubber | 70 | Nominal 60 | 1.77 | Compression molding | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, |
| Viton TM A-401C | Rubber | 74 | 42 | 1.82 | Compression molding, Transfer molding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Boots, Valves, Hose, Tubing, Extruded Profiles |
| Viton TM A-401C-CC | Rubber | 78 | 82 | - | Compression molding, Transfer molding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Boots, Valves,, Hose, Tubing, Extruded Profiles |
| Viton TM A-361C-CC | Rubber | 78 | 65 | - | Compression molding, Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles |
| Viton TM B-601C | Rubber | 65 | 1.85 | Compression molding, Injection moolding, Calendering | Gaskets, Diaphragms, O-Ring, V-Ring, | |
| Viton TM GBL-200S | Rubber | 20-30 | 1..85 | Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles | |
| Viton TM GBL-600S | Rubber | 65 | 1.85 | Compression molding, Calendering | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, | |
| Viton TM GLT-200S | Rubber | 25-30 | 1.78 | Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles | |
| Viton TM GLT-600S | Rubber | 65 | 1.78 | Compression molding, Calendering | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, | |
| Viton TM GBLT-200S | Rubber | 25-30 | 1.8 | Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles | |
| Viton TM GBLT-600S | Rubber | 65 | 1.8 | Compression molding, Calendering | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, | |
| Viton TM GF 200S | Rubber | 25-30 | 1.91 | Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles | |
| Viton TM GF 600S | Rubber | 65 | 1.91 | Calendering | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, | |
| Viton TM GFLT 200S | Rubber | - | 25-30 | 1.86 | Transfer molding, Injection moolding, Calendering, Extrusion | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, Hose, Tubing, Extruded Profiles |
| Viton TM GFLT 600S | Rubber | - | 65 | 1.86 | Compression molding, Calendering | Gaskets, Diaphragms, O-Ring, V-Ring, Valve Stem, Shaft Seals, Boots, Valves, |
| Viton TM FKM 2602G2 | Rubber | 77 | 50 | - | Compression molding, Extrusion, Calendering | Gaskets, O-Ring, V-Ring, Seals |
| Viton TM VTR9217 | Rubber | 66 | 20 | 1.82 | Extrusion | Hose,Filler neck hose, Tubing |
| Viton TM VTR7419 | Rubber | 67 | - | 1.82 | Extrusion | Hose,Filler neck hose, Tubing |
| Viton TM VPA no.2 | Processing Aids | - | - | 0.99 | - | - |
| Viton TM VPA no.3 | Processing Aids | - | - | 1.43 | - | - |
| Viton TM RCP-6792 | Accelerator | - | - | - | - | - |
| Viton TM RCP-7014 | Accelerator | - | - | - | - | - |
| Viton TM Curative No.30 | Curing agent | - | - | - | - | - |
| Viton TM Curative No.50 | Curing agent | - | - | - | - | - |
| Viton TM Diak No.1 | Curing agent | - | - | - | - | - |
